MEASUREMENT WITH PURPOSE
Measure with confidence. Make better decisions.
Metrology is the science of measurement. In engineering and manufacturing, inspection uses accurate measurement to verify that components and processes meet their defined requirements.
A component can look perfect to the untrained eye and still be outside specification. A small difference in a critical diameter, hole position, flatness or other feature may not be visible, but it can affect assembly, performance, reliability and function.
WHAT IS METROLOGY?
Measurement is at the heart of quality.
Metrology provides the principles and methods used to make reliable measurements. Inspection applies those measurements to determine whether a component, feature or process meets its specified requirements.
Why is inspection important? A component can look perfect to the untrained eye and still be outside specification. A small difference in a critical diameter, hole position, flatness or other feature may not be visible, but it can affect assembly, performance, reliability and ultimately the safety or function of the finished product.
That is why visual inspection alone is not enough for critical components. Accurate measurement gives you confidence that the part is not only visually acceptable, but also meets the engineering requirements it was designed to meet.
Measure
Use appropriate inspection equipment and methods to capture dimensional or geometric information.
Decide
Compare results with the defined requirements and use the information to support quality and process decisions.
CMM INSPECTION
What is a CMM?

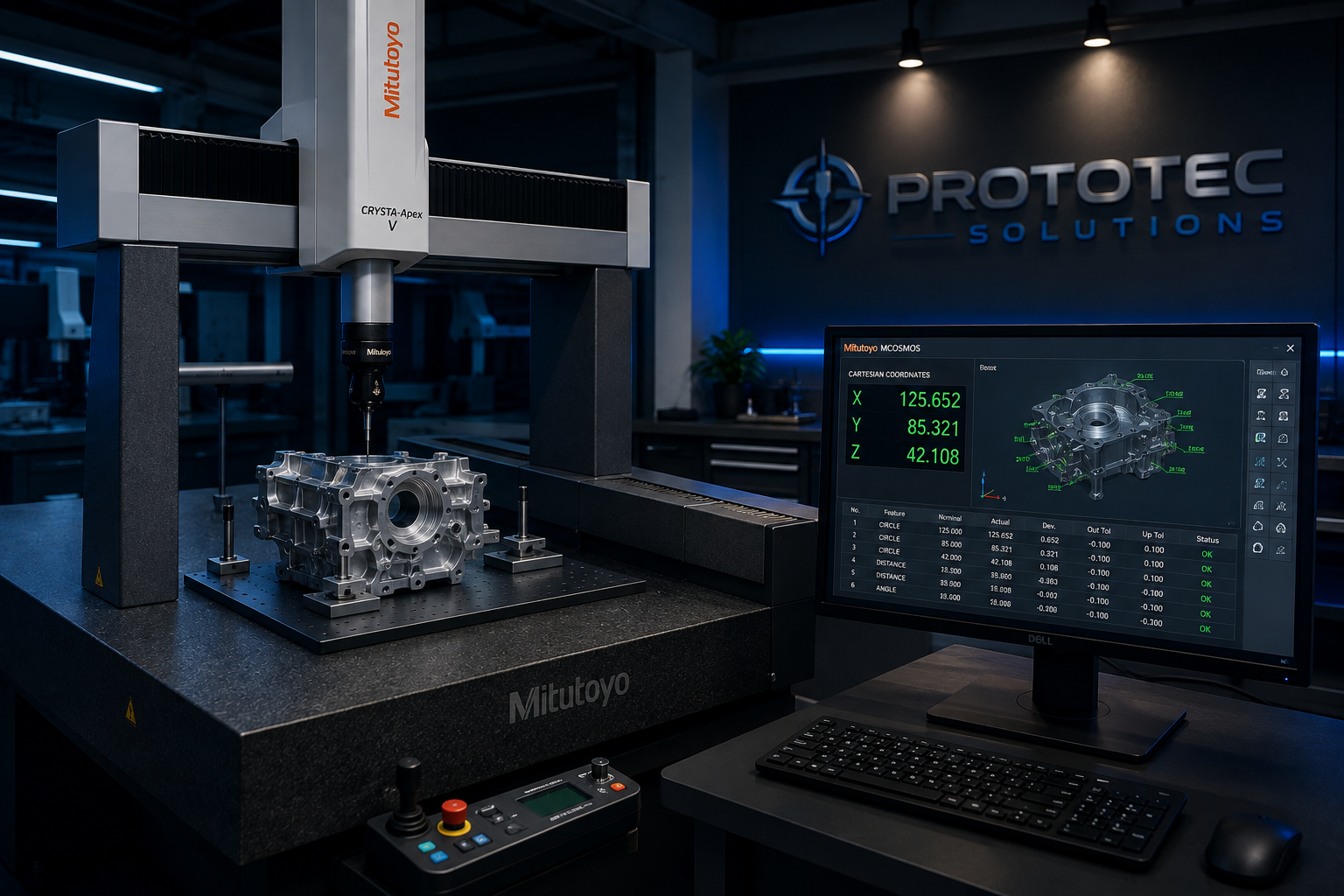

A Coordinate Measuring Machine (CMM) is a highly accurate inspection system used to measure the geometric dimensions of a component in three dimensions. A precision probe touches selected features on the part and records their X, Y and Z coordinates.
The measured data can then be compared with the engineering drawing or CAD model to verify dimensions, positions and geometric features. This provides a detailed, repeatable way to confirm that a component is within specification.
Temperature control matters.Materials expand and contract with temperature. Keeping the inspection environment stable helps minimise thermal effects and produces more consistent, repeatable measurement results — particularly when working to tight tolerances.
YOU CAN'T HIDE FROM INSPECTION.
THE CMM WILL FIND YOU. 😉
THE CMM WILL FIND YOU. 😉
BENEFITS
Why inspection matters.
Quality assurance
Verify that manufactured components conform to their specified requirements.
Process control
Use measurement data to understand variation and identify when a process needs attention.
Reduce waste
Detect problems earlier, helping reduce scrap, rework and avoidable production costs.
Confidence
Reliable measurement gives engineers and customers greater confidence in component quality and process performance.
INSPECTION IN PRACTICE
The right measurement for the requirement.
Dimensional inspectionCheck critical dimensions against engineering drawings and defined tolerances.
Geometric featuresConsider features such as position, flatness, perpendicularity and other geometric requirements.
First-off & in-process checksUse inspection at appropriate stages to identify issues before they become larger problems.
Measurement-led improvementTurn inspection results into useful information for root-cause analysis and continuous improvement.
PROTOTEC SOLUTIONS
Inspection should support the process — not just check the final part.
Good inspection provides information that can be acted upon. By connecting measurement with machining, engineering and continuous improvement, businesses can make better decisions and build more robust processes.
